Wafer Type Ball Valve With High Mounting

Wafer Type Ball Valve With High Mounting

1000W.O.G.PN63

Features:
The suitable medium of this ball valve include water, oil, air and some corrosive liquid, etc. The working pressure should be 1.6-4.0Mpa. And the valve can be available when the ttemperature is -20°C~350°C. The design of this wafer type ball valve with high mounting can meet the standard of GB/T12237/1989. The flange end of this stainless steel wafer ball valve will refer to JB79.

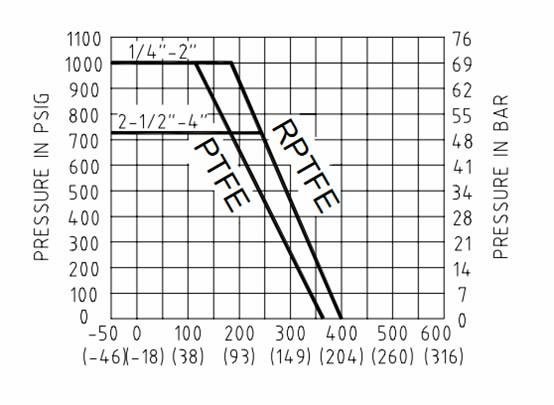

Pressure VS Temperature Chart of Wafer Type Ball Valve with High Mounting:

Construction Materials of Wafer Type Ball Valve with High Mounting:

NO. Part Material
1 Body 316
2 Bonnet  316
3 Ball 316
4 Seat PTFE
5 Stem 316
6 Anti-Static 316
7 Body gasket PTFE
8 Thrust spacer PTFE
9 Fiting PTFE
10 Transition spacer RPTFE
11 Filling clamping ring 304
12 Butterfly spring 304
13 Nut 304
14 Loose resistant cover  304
15 Handle Nut 304
16 Lock Device 304
17 Handle SS
18 Handle Sleeve Plastic
19 Bore  304

Dimensions of Wafer Type Ball Valve with High Mounting:

SIZE ΦD ΦR ΦC ΦD f T L H1 H A P N ΦM W ΦA ΦA ΦB ΦB2
2" 50 100 125 118 3 16 80 120 86 14 14 4 M16 200 7 9 50 70
2-1/2" 63.5 120 145 130 3 18 110 158 108 17 17 4 M16 300 9 11 70 102
3" 76 135 160 180 3 20 120 165 116 17 17 4 M16 300 9 11 70 102
4" 95 155 180 192 3 20 150 182 139 22 22 4 M16 400 - 11 - 102

Statement: this information is just for reference, for detailed information, please contact us.
