Three-Piece Flange Ball Valve

1000 W.O.G. PN63

Features:
This ball valve has carbon steel body and alloy steel trim which is suitable for -40°C ~180°C. Thanks to a new Carbon reinforced PTFE seat and sealing, the stainless steel 3 piece flange ball valve is suitable for various media, such as Q41F-(16-40) C water, oil, steam, Q41F-(16-40) P Nitric acid, Q41F-(16-40) R Acetic acid, etc. Besides, this three-piece flange ball valve is designed to avoid leakages and fugitive emissions in the environment. This ball valve has identical features, such as nominal pressure should be PN1.6, 2.5, 4.0, 6.4Mpa. The strength testing pressure will be PT2.4, 3.8, 6.0, 9.6Mp. Low seat testing pressure is 0.6Mpa. And high seat testing pressure will be 1.8, 2.8, 4.4, 7.1Mpa.

Part Materials of Three-Piece Flange Ball Valve:

Parts	Q41F-(16-64)C		Q41F-(16-64)P	Q41F-(16-64)R
Body	WCB		ZG1Cr18Ni9Ti CF8	ZG1Cr18Ni12Mo2Ti CF8M
Bonnet	WCB		ZG1Cr18Ni9Ti CF8	ZG1Cr18Ni12Mo2Ti CF8M
Ball	ICr18Ni9Ti 304		1Cr18Ni9Ti 304	1Cr18Ni12Mo2Ti 316
Stem	ICr18Ni9Ti 304		1Cr18Ni9Ti 304	1Cr18Ni12Mo2Ti 316
Sealing
Packing

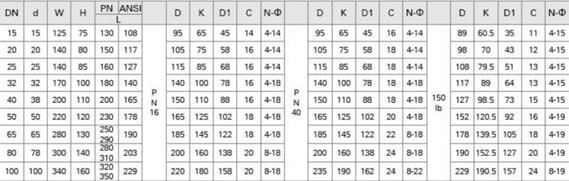

Main Outer Size of Three-Piece Flange Ball Valve:

Statement: this information is just for reference, for detailed information, please contact us.
