Three-Piece Ball Valve With High Mounting Screw End

1000 W.O.G. PN63

Features: ISO-5211 Top
The pipe thread of this stainless steel ball valve can conform to NPT, BSPT, BSP, ISO-228 Class A Thread. The nominal pressure can be 1000PSI (PN63) for 1/2" to 4". The stem adopts blow-out proof materials. And the locking device materials of this three-piece ball valve with high mounting screw end can be CF8M (DIN 1.4408), CF8 (DIN 1.4308), WCB (DIN 1.0619). The temperature range can be PTFE: -20℃~180℃, TFM: -50℃~270℃, RPTFE: -35℃~210℃. This 1000 W.O.G. three-piece ball valve with high mounting screw end can be used as cutting off or connecting medium in all kinds of piping. The suitable medium for three-piece ball valve with high mounting screw end can be water, oil, air and some corrosive liquid (W.O.G).

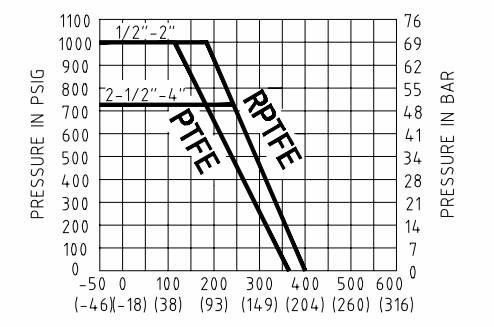

Pressure VS Temperature Chart of Three-Piece Ball Valve with High Mounting Screw End:

Dimensions of Three-Piece Ball Valve with High Mounting Screw End:

Dime	D	H	h	T	L	ISO-5211		S
Size						A	B
1/2"	15	43	7	5	72	F03	F04	9
3/4"	20	46	7	6	79	F03	F04	9
1"	25	50	9	6	93	F04	F05	11
1-1/4"	32	56	11	6	111	F04	F06	11
1-1/2"	40	68	14	7	119	F05	F07	14
2"	50	76	14	8	136	F05	F07	14
2-1/2"	65	95	17	8	185	F07	F10	17
3"	80	105	22	10	210	F07	F10	17
4"	100	125	22	10	266	F10	F12	22

Construction Materials of Three-Piece Ball Valve With High Mounting Screw End:

No.	Part	Material	Q`Ty
1	Ball	AISI 316	1
2	Body Seal	PTFE	2
3	Bolt	AISI 304	4
4	Cap	AISI 316	2
5	Body Seat	PTFE	2
6	Stem Washer	Poly PTFE	1
7	Stem Packing	PTFE	1
8	Gland	AISI 304	1
9	Stem	AISI 316	1
10	Body	AISI 316	1
11	Bolt Washer	AISI 304	4
12	Hex Nut	AISI 304	4

Statement: this information is just for reference, for detailed information, please contact us.
