Description:
The nominal pressure of this stainless steel 1 way ball valve is 1.6 MPa ~ 6.4 MPa. When the sealing ring is strengthened polytetrafluoroethylene, the working temperature of this valve should be -35℃ ~ 210℃. While the sealing ring is polyphenyl, the working temperature should be -29℃ ~ 300℃. This 1000 W.O.G. one-piece ball valve screw end can be used as cutting off or connecting medium in all kinds of piping. According to the different materials, this 1PC ball valve 1000 WOG can be applied as the medium of water, steam, oil, nitric acid, acetic acid and so on. It has the features of strong corrosion resistance, high mechanical strength, well environmental protection, long service life, high casting precision, etc.
Construction Materials of 1000 W.O.G. One-Piece Ball Valve Screw End:
No. | Part | Material | Q`Ty |
1 | Body | AISI 316 | 1 |
2 | Seat Retainer | AISI 316 | 1 |
3 | Thrust Washer | AISI 316 | 1 |
4 | Body Seat | PTFE | 1 |
5 | Stem Seal | PTFE | 2 |
6 | Stem Washer | AISI 316 | 1 |
7 | Spring Washer | AISI 304 | 1 |
8 | Stem Nut | AISI 304 | 1 |
9 | Stem | AISI 316 | 1 |
10 | Locking Device | AISI 304 | 1 |
11 | Handle | AISI 304 | 1 |
12 | Handle Sleeve | Plastic | 1 |
13 | Body Seat | PTFE | 1 |
14 | Ball | AISI 316 | 1 |

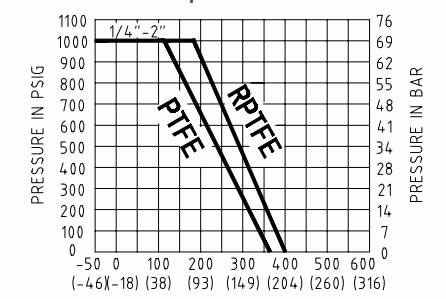

Pressure Vs Temperature Chart of 1000 W.O.G. One-Piece Ball Valve Screw End:
Dimensions of 1000 W.O.G. One-Piece Ball Valve Screw End:
NPS | ΦD | W | H | L±2 |
1/4" | Φ5 | 74 | 30 | 40 |
3/8" | Φ7 | 85 | 33 | 45 |
1/2" | Φ9 | 88 | 43 | 55 |
3/4" | Φ12 | 89 | 46 | 59 |
1" | Φ15 | 107 | 52 | 71 |
1-1/4" | Φ20 | 124 | 55 | 77 |
1-1/2" | Φ25 | 137 | 66 | 84 |
2" | Φ32 | 137 | 72 | 98 |
Statement: this information is just for reference, for detailed information, please contact us.
