Three-Piece Flange Ball Valve (With High Mounting Pad)

Three-Piece Flange Ball Valve (With High Mounting Pad)

Features:
This ball valve has carbon steel body and alloy steel trim which is suitable for -40°C ~180°C. Thanks to a new Carbon reinforced PTFE seat and sealing, the stainless steel flange ball valve is suitable for various media, such as Q41F-(16-40) C water, oil, steam, Q41F-(16-40) P Nitric acid, Q41F-(16-40) R Acetic acid, etc. Besides, this three-piece flange ball valve with high mounting pad is designed to avoid leakages and fugitive emissions in the environment. This ball valve has identical features, such as nominal pressure should be PN1.6, 2.5, 4.0, 6.4Mpa. The strength testing pressure will be PT2.4, 3.8, 6.0, 9.6Mp. Low seat testing pressure is 0.6Mpa. And high seat testing pressure will be 1.8, 2.8, 4.4, 7.1Mpa.

Parts Materials of Three-Piece Flange Ball Valve with High Mounting Pad:

Parts Q41F-(16-64)C Q41F-(16-64)P Q41F-(16-64)R
Body WCB ZG1Cr18Ni9Ti
CF8
ZG1Cr18Ni12Mo2Ti
CF8M
Bonnet WCB ZG1Cr18Ni9Ti
CF8
ZG1Cr18Ni12Mo2Ti
CF8M
Ball ICr18Ni9Ti
304
1Cr18Ni9Ti
304
1Cr18Ni12Mo2Ti
316
Stem ICr18Ni9Ti 1Cr18Ni9Ti 1Cr18Ni12Mo2Ti
304 304 316
Sealing Polytetrafluorethylene(PTFE)
Packing Polytetrafluorethylene(PTFE)

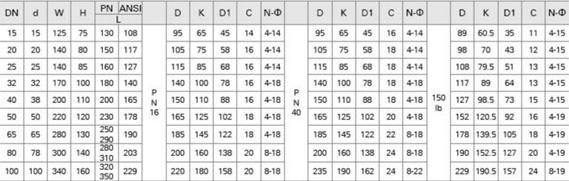

Main Outer Size of Three-Piece Flange Ball Valve with High Mounting Pad:

Statement: this information is just for reference, for detailed information, please contact us.
