1000W.O.G.PN63
Features: ISO-5211 Top
The pipe thread of this stainless steel ball valve can conform to NPT, BSPT, BSP, ISO-228 Class A Thread. The nominal pressure can be 1000PSI (PN63) for 1/2" to 3". The stem adopts blow-out proof materials. And the locking device materials of this two-piece screwed ball valve can be CF8M (DIN 1.4408), CF8 (DIN 1.4308), WCB (DIN 1.0619). The temperature range can be PTFE: -20℃~180℃, TFM: -50℃~270℃, RPTFE: -35℃~210℃. This 1000 W.O.G. two-piece ball valve with high mounting screw end can be used as cutting off or connecting medium in all kinds of piping. The suitable medium for this two-piece ball valve with high mounting screw end can be water, oil, air and some corrosive liquid (W.O.G).

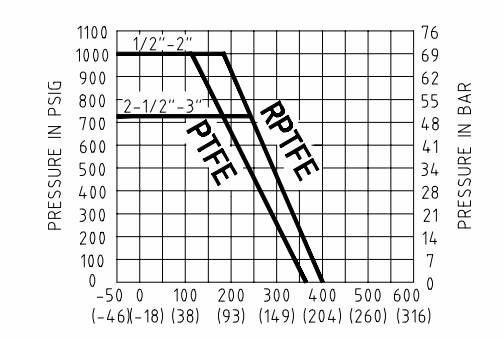

Pressure Vs Temperature Chart of Two-Piece Ball Valve with High Mounting Screw End:
Dimensions of Two-Piece Ball Valve with High Mounting Screw End:
Dime Size | D | H | h | T | L | ISO-5211 | S | |
A | B | |||||||
1/2" | 15 | 43 | 9 | 5 | 64 | F03 | F04 | 9 |
3/4" | 20 | 49 | 9 | 5 | 70 | F03 | F04 | 9 |
1" | 25 | 58 | 11 | 5 | 85 | F04 | F05 | 11 |
1-1/4" | 32 | 63 | 11 | 5 | 94 | F04 | F06 | 11 |
1-1/2" | 40 | 71 | 14 | 6 | 105 | F05 | F07 | 14 |
2" | 50 | 78 | 14 | 6 | 125 | F05 | F07 | 14 |
2-1/2" | 65 | 101 | 17 | 8 | 155 | F07 | F10 | 17 |
3" | 80 | 109 | 17 | 10 | 173 | F07 | F10 | 17 |
Construction Materials of Two-Piece Ball Valve with High Mounting Screw End:
No. | Part | Material | Q`Ty |
1 | Body | AISI 316 | 1 |
2 | Body Gasket | PTFE | 1 |
3 | Cap | AISI 316 | 1 |
4 | Body Seat | PTFE | 2 |
5 | Ball | AISI 316 | 1 |
6 | Stem Seal | PTFE | 1 |
7 | Stem Packing | PTFE | 1 |
8 | Gland | AISI 304 | 1 |
9 | Stem | AISI 316 | 1 |
Statement: this information is just for reference, for detailed information, please contact us.
