1000W.O.G.PN63
Features:
This valve can be available when the temperature is -40°C~180°C. The applicable medium of this stainless steel screwed three-way ball valve include Q14 15F-(16-64) C water, oil, steam, Q14 15F-(16-64) P nitric acid, Q14 15F-(16-64) R acetic acid. The nominal pressure of this three-way ball valve screw end can be PN 1.6, 2.5, 4.0, 6.4Mpa. The strength testing pressure can be PT 2.4, 3.8, 6.0, 9.6Mpa. The seat testing pressure of 3 way ball valve is 0.6Mpa. This is low pressure. And the high seat testing pressure can be 1.8, 2.8, 4.4, 7.1Mpa.
Main Construction Materials of Three-Way Ball Valve Screw End:
NO. | PART | MATERIAL | Q'TY |
1 | Body | AISI 316 | 1 |
2 | Cop | AISI 316 | 3 |
3 | Boll | AISI 316 | 1 |
4 | Body Seat | PTFE | 3 |
5 | Body Seal | PTFE | 3 |
6 | Stem Seat | PTFE | 1 |
7 | Stem Packing | PTFE | 1 |
8 | Stem Woshr | AISI 304 | 1 |
9 | Spring Wosher | AISI 304 | 1 |
10 | Stem Nut | AISI 304 | 1 |
11 | Stem | AISI 316 | 1 |
DN | G | L | B | A | H |
6 | 1/4" | 70 | 12 | 110 | 58 |
10 | 3/8" | 70 | 12 | 110 | 58 |
15 | 1/2" | 70 | 12 | 110 | 58 |
20 | 3/4" | 83 | 14 | 120 | 60 |
25 | 1" | 92 | 18 | 140 | 70 |
32 | 1-1/4" | 125 | 25 | 140 | 82 |
40 | 1-1/2" | 140 | 32 | 180 | 95 |
50 | 2" | 155 | 38 | 200 | 100 |

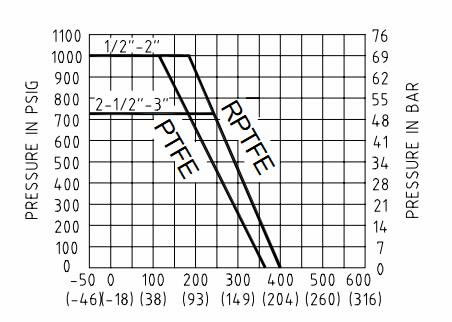

Pressure VS Temperature Chart of Three-Way Ball Valve Screw End:
Dimensions of Three-Way Ball Valve Screw End:
SIZE | Φd | L | F | H | H1 | ΦB1 | ΦB2 | G | ΦA1 | ΦA2 | A | W | B |
1/2" | 11.0 | 79.0 | 39.5 | 42.0 | 70.0 | 42.0 | 36.0 | 9.0 | 6.0 | 6.0 | 9.0 | 135.0 | 27.0 |
3/4" | 15.0 | 88.0 | 44.0 | 49.0 | 77.0 | 50.0 | 36.0 | 9.0 | 6.0 | 7.0 | 9.0 | 135.0 | 34.0 |
1" | 20.0 | 108.0 | 54.0 | 59.0 | 87.0 | 50.0 | 42.0 | 11.0 | 6.0 | 7.0 | 11.0 | 170.0 | 41.0 |
1-1/4" | 25.0 | 124.0 | 62.0 | 63.0 | 93.0 | 70.0 | 42.0 | 11.0 | 11.0 | 9.0 | 11.0 | 170.0 | 50.0 |
1-1/2" | 32.0 | 133.0 | 67.0 | 73.5 | 103.0 | 70.0 | 50.0 | 14.0 | 7.0 | 9.0 | 14.0 | 200.0 | 56.0 |
2" | 40.0 | 164.0 | 82.0 | 82.8 | 113.0 | 70.0 | 50.0 | 14.0 | 7.0 | 9.0 | 14.0 | 200.0 | 70.0 |
Statement: this information is just for reference, for detailed information, please contact us.
