Cast Iron Flange Ball Valve

Cast Iron Flange Ball Valve

Class 150LB-JIS10K
Description:
The unique features offered by this kind of ball valve make them suitable for fresh water, sewage, seawater, air, fibre, etc. Cast iron construction provides its superior characteristics. Handle, worm gear, pneumatic and electric are available options for this cast iron flange ball valve. Face to face dimensions conform to ANSI Standard B16.10, which can exactly match end to end dimensions of all cast iron gates and plug valves. Maximum operating temperature is 180℃. Ductile iron and stainless steel construction are also available from the manufacturer.

Part Materials of Cast Iron Flange Ball Valve:

Parts name:Cast lron Class150
Body:Cast lron Size:1/2"-8"(DN15-DN200)
Bonnet:Cast lron Working Temperature:<180℃
Lever:Cast lron Flange Standard:ANSI B16.5
Seat:PTFE Face to Face: ANSI B16.10
Ball/stem:ST.ST Check and Test: ANSI B 16.34 or API 598

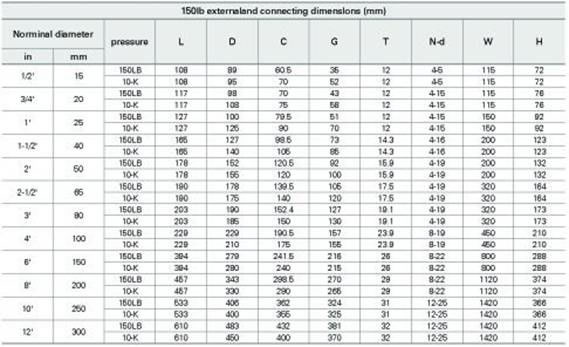

Connecting Dimension of Cast Iron Flange Ball Valve:

Statement: this information is just for reference, for detailed information, please contact us.
