Three-Piece Ball Valve Screw End

Three-Piece Ball Valve Screw End

1000 W.O.G. PN63

Features:
Pipe Thread in Accordance: NPT, BSPT, BSP, DIN259, DIN2999, ISO228 Class A
Temperature Range: PTFE: -20℃ ~180℃
TFM: -50℃ ~270℃
RPTFE: -35℃ ~210℃
Suitable Medium: Water, Oil, Air and Some Corrosive Liquid (W.O.G)
Investment Casing Body

Features:
The pipe thread of this stainless steel ball valve can conform to NPT, BSPT, BSP, ISO-228 Class A Thread. The nominal pressure can be 1.6~6.4MPa. The stem adopts blow-out proof materials. And the locking device materials of this three-piece ball valve screw end can be CF8M (DIN 1.4408), CF8 (DIN 1.4308), WCB (DIN 1.0619). The temperature range can be PTFE: -20℃~180℃, TFM: -50℃~270℃, RPTFE: -35℃~210℃. This 1000 W.O.G. three-piece ball valve screw end can be used as cutting off or connecting medium in all kinds of piping. The suitable medium for this ball valve screw end can be water, oil, air and some corrosive liquid (W.O.G).

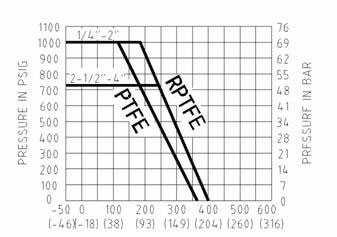

Pressure VS Temperature Chart of Three-Piece Ball Valve Screw End:

Dimensions of Three-Piece Ball Valve Screw End:

NPS ΦD W H L±2
1/4" 6 95 46 65
3/8" 10 95 46 65
1/2" 15 110 46 75
3/4" 20 110 54 85
1" 25 140 64 90
1-1/4" 32 140 69 112
1-1/2" 40 155 76 120
2" 50 180 86 145
2-1/2" 65 220 120 170
3" 80 260 150 200
4" 100 350 170 263

Main Construction Materials of Three-Piece Ball Valve Screw End:

No. Part Material Q'TY
1 Body AISI 316 1
2 Body Seat PTFE 2
3 Cap AISI 316 2
4 Bolt Washer AISI 304 4
5 Ball AISI 316 1
6 Hex Nut AISI 304 4
7 Bolt AISI 304 4
8 Stem Seal PTFE 1
9 Stem Packing PTFE 1
10 Gland AISI 304 1
11 Handle AISI 304 1
12 Stem Washer AISI 304 1
13 Stem AISI 316 1
14 Stem Nut AISI 304 1
15 Locking Device AISI 304 1
16 Handle Sleeve Plastic 1

Statement: this information is just for reference, for detailed information, please contact us.
