Two-Piece Ball Valve Screw End

Two-Piece Ball Valve Screw End

Features: 1000 W.O.G. PN63
The pipe thread of this stainless steel ball valve can conform to NPT, BSPT, BSP, ISO-228 Class A Thread. The nominal pressure can be 1.6~6.4MPa. The stem adopts blow-out proof materials. And the locking device materials of this two-piece ball valve screw end can be CF8M (DIN 1.4408), CF8 (DIN 1.4308), WCB (DIN 1.0619). The temperature range can be PTFE: -20℃~180℃, TFM: -50℃~270℃, RPTFE: -35℃~210℃. This 1000 W.O.G. two-piece ball valve screw end can be used as cutting off or connecting medium in all kinds of piping. The suitable medium for this two-piece ball valve with high mounting screw end can be water, oil, air and some corrosive liquid (W.O.G).

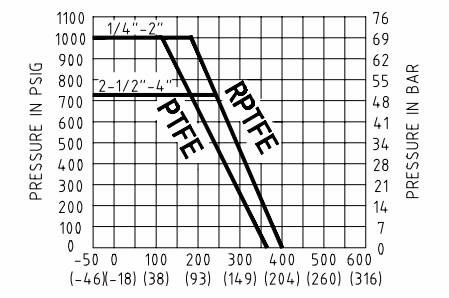

Pressure Vs Temperature Chart of Two-Piece Ball Valve Screw End: 1000 W.O.G. PN63

Dimensions of Two-Piece Ball Valve Screw End: 1000 W.O.G. PN63

NPS ΦD W H L±2
1/4" 10 95 42 55
3/8" 12 95 42 55
1/2" 15 108 51 62
3/4" 20 115 58 75
1" 25 135 77 85
1-1/4" 32 150 83 102
1-1/2" 40 175 97 108
2" 50 190 106 124
2-1/2" 65 220 122 163
3" 80 250 133 185
4" 100 320 162 225

Construction Materials of Two-Piece Ball Valve Screw End: 1000 W.O.G. PN63

No. Part Material Q`Ty
1 Body AISI 316 1
2 Cap AISI 316 1
3 Body Seat PTFE 2
4 Ball AISI 316 1
5 Body Seal PTFE 1
6 Stem Seal PTFE 1
7 Stem Packing PTFE 1
8 Gland AISI 304 1
9 Stem AISI 316 1
10 Stem Nut AISI 304 1
11 Spring Washer AISI 304 1
12 Locking Device AISI 304 1
13 Handle AISI 304 1
14 Handle Sleeve Plastic 1

Statement: this information is just for reference, for detailed information, please contact us.
