Pressure-Balanced Oil-Sealed Inverted Plug Valves ANSI

Pressure-Balanced Oil-Sealed Inverted Plug Valves ANSI

Description:
This valve features flange connection, oil seal and straight structure. Seal surface material employs stainless steel or alloy steel. The suitable pressure for this valve is 150 Lb ~ 900 Lb. The plug valves whose body material adopts carbon steel or stainless steel can be applied when the nominal pressure is Class150Lb ~ 900Lb and the working temperature is -29℃-180℃. This pressure-balanced oil-sealed inverted plug valves ANSI can be used as cutting off or connecting medium in various pipelines such as petroleum, chemical, pharmaceutical, chemical fertilizer, and electric power industry, etc.

Features:
(1) The obvious advantages of this pressure-balanced oil-sealed inverted plug valves ANSI include reasonable structure, reliable sealing, and good performance, beautiful modeling, etc;
(2) The plug valve adopts inversion pressure balance structure. It can ensure light switch action;
(3) There is no oil sink between sealing surface and the valve body. It can increase seal performance;
(4) The parts materials and flange sizes of this pressure-balanced oil-sealed inverted plug valves ANSI can be selected reasonable according to actual working or user requirements.

Performance Parameter of ZDAX47 Pressure-Balanced Oil-Sealed Inverted Plug Valves ANSI
Type Class
(Lb)
ZDAX47-150(Lb) 150
ZDAX47-300(Lb) 300
ZDAX47-600(Lb) 600
ZDAX47-900(Lb) 900
Part Materials of ZDAX47 Pressure-Balanced Oil-Sealed Inverted Plug Valves ANSI
Type Materials
Valve body, cover Gasket Plug, stem O-shape ring Packing
ZDAX47-150(Lb) WCB、CF8、CF8M、CF3、CF3M Flexible graphite + stainless steel Gr.F6a、F22、F304、F316、F321、F304L、F316L Nitrile rubber Flexible graphite
ZDAX47-300(Lb)
ZDAX47-600(Lb)
ZDAX47-900(Lb)
Dimension and Weight of ZDAX47, Class150 Pressure-Balanced Oil-Sealed Inverted Plug Valves ANSI(mm)
DN/in L(RF) L(BW) H W Weight/kg
½ 108 Flexible graphite 152 180 400 10
¾ 117 178 180 400 12
1 127 203 185 500 14
140 216 200 500 17
165 229 210 600 19
2 178 267 215 600 21
190 305 250 820 29
3 203 330 270 820 33
4 229 356 300 300 48
5 254 381 340 300 75
6 267 394 365 320 98
8 292 457 400 320 125
10 330 533 450 350 171
12 356 610 510 380 230
14 381 686 590 380 370
Dimension and Weight of ZDAX47, Class300 Pressure-Balanced Oil-Sealed Inverted Plug Valves ANSI(mm)
DN DN/in L(RF) L(BW) H W Weight/kg
15 ½ 140 152 180 400 12
20 ¾ 152 178 180 400 14
25 1 165 203 185 500 16
32 178 216 200 600 19
40 190 229 210 600 999
50 2 216 267 215 820 24
65 241 305 250 1000 31
80 3 283 330 270 1000 36
100 4 305 356 300 300 61
125 5 381 381 340 300 86
150 6 403 457 365 320 130
200 8 419 521 400 320 190
250 10 457 559 450 350 255
300 12 502 635 510 380 380
350 14 762 762 590 380 560
Dimension and Weight of ZDAX47, Class600 Pressure-Balanced Oil-Sealed Inverted Plug Valves ANSI(mm)
DN/in L(RF) L(BW) H W Weight/kg
½ 165 165 180 400 14
¾ 190 190 180 400 16
1 216 216 185 500 18
229 229 200 500 20
241 241 210 600 24
2 292 292 215 600 29
330 330 250 820 35
3 356 356 270 820 47
4 432 432 300 300 91
5 508 508 340 300 129
6 559 559 365 320 210
8 660 660 400 320 320
10 787 787 450 350 660
12 838 838 510 380 920
14 889 889 590 380 1250
Dimension and Weight of ZDAX47, Class900 Pressure-Balanced Oil-Sealed Inverted Plug Valves ANSI(mm)
DN DN/in L(RF) L(BW) H W Weight/kg
15 ½ 229 229 180 400 17
20 ¾ 229 229 180 400 29
25 1 254 254 185 500 21
32 279 279 200 600 24
40 305 305 210 600 30
50 2 368 368 215 820 37
65 419 419 250 1000 44
80 3 381 381 270 1000 65
100 4 457 457 300 300 110
125 5 559 559 340 300 160
150 6 610 610 365 320 255
200 8 737 737 400 320 380
250 10 838 838 450 350 810
300 12 965 965 510 380 1050
350 14 1029 1029 590 380 1460

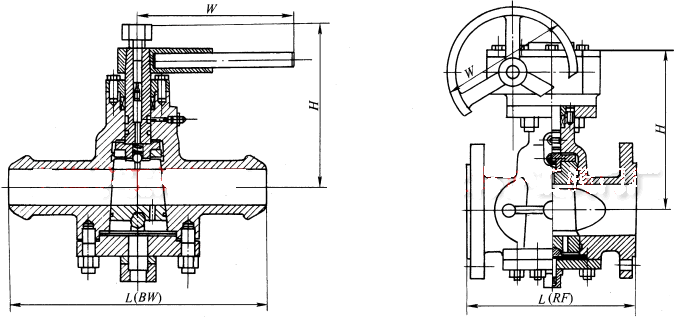

Drawing of Pressure-Balanced Oil-Sealed Inverted Plug Valves ANSI:

ZDAX47

Statement: this information is just for reference, for detailed information, please contact us.
