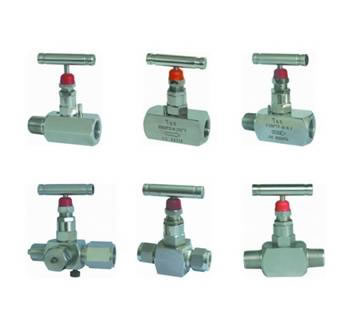

Angle valve:

Size
No.	Joint size	L	H	Do	Weight/size
SS-26NVF4-A	1/4〞NPTF	32	55	57	0.4
SS-26NVF6-A	3/8〞NPTF	32	55	57	0.4
SS-26NVF8-A	1/2〞NPTF	36	58	63	0.5
Size
No.	Joint size	L	H	Do	Weight/size
SS-26NVF4-M4-A	1/4〞NPTF MXF	32	55	57	0.4
SS-26NVF6-M6-A	3/8〞NPTF MXF	32	55	57	0.4
SS-26NVF8-M8-A	1/2〞NPTF MXF	36	58	63	0.5

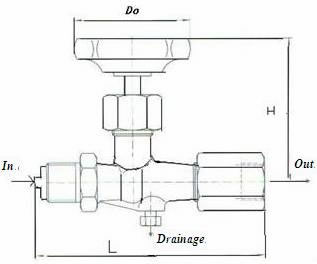

Metering valve:

Size:

No.	In	Out	L	H	Do	Weight/Kg
SS-26NVGF8-M8	G1/2〞	G1/2〞	122	78	63	0.6

Note: 1. The standard threaded pressure and interface size; 2. Pressure gauge interface

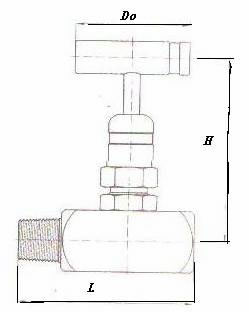

External Dimension:

Parts	Main material
	316SS	A105
	Material grade/ASTM standard
Hand shank Screw	316SS/A276
	S17400/A564
Circle	Glass fiber can reinforce PTFE
Bonnet	SS316/A479	A105
Locknut	SS316/B783
Stem	S17400/564
Rod end O type	SS316/A276	A105
	PTFE/D1710
	Carbon miliaria/FKM
Valve seat	Polyvinyl alcohol/D4181
Valve body	SS316/A479	A105
Humid	Two tungsten sulfide and carbon silicon base

Property Specification:

Shell test	800-10000psi	1.5PN
Tightness test		1.1PN
Suitable temperature	℃	180
Applicable median	Water, steam, oil etc

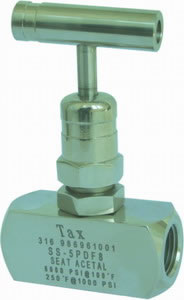

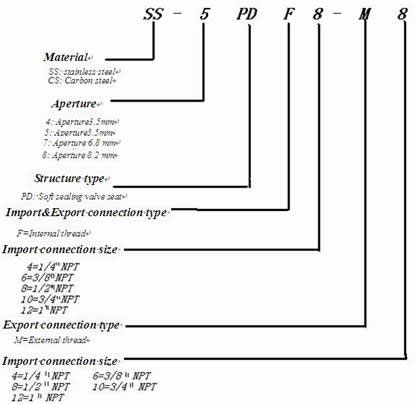

No.	Joint size	L	H	Do	Weight/Kg
SS-4PDF4	1/4〞NPTF	57	75	45	0.45
SS-4PDF6	3/8〞NPTF	57	75	45	0.45
SS-5PDF8	1/2〞NPTF	68	90	56	0.6
SS-7PDF10	3/4〞NPTF	80	100	70	1.1
SS-8PDF12	1〞NPTF	90	108	80	1.5

No.	Joint size	L	H	Do	Weight/Kg
SS-4PDF4-M4	1/4〞NPTMXF	68	75	45	0.5
SS-4PDF6-M6	3/8〞NPTMXF	68	75	45	0.5
SS-5PDF8-M8	1/2〞NPTMXF	86	90	56	0.7

No.	Joint size	L	H	Do	Weight/Kg	No.
SS-5PDGF8	1/2〞NPTM	3-1/2〞NPTF	142	90	56	1.1

No.	In	Out	L	H	Do	Weight/Kg
SS-5PDGF8	1/2" NPTM	3-1/2" NPTF	91	90	56	0.7

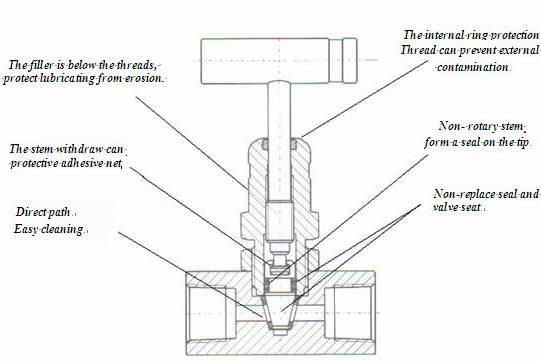

1. Design Functions:
1. There are 2 slices of non- rotating sclerosis rapid sealing, which can ensure long service life (17-four ph);
2. The driver thread presents packing seal to prevent the pollution of process medium;
3. Temperature rating: -15℃-170℃;
  4. Fxexible packing replacement can further extend the service life;
  5. The main components are traceable materials;
6. We adopt 100% static test;
7. The rear sealing stem can extend the packing use time.

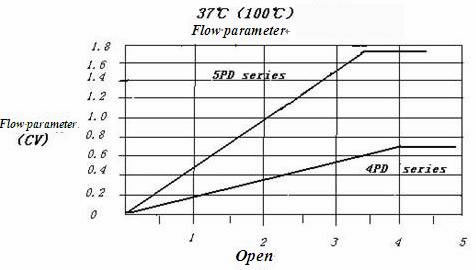

2. Valve Flow Figure
3. Original Material

Parts	Main materials
	SS316	A105      CS
Hand shank	SS304
Jim nut	SS304
Cap	SS316	A105
Gland bolts	SS316	A105
Decorative cover	SS316	A105
Valve seat	SS316	2Cr13
Packing	Flexible graphite / PTFE / carbon fiber
Valve gasket	SS316	SS304
Stem	SS316	A105
Stem	SS316	2Cr13
Double nut	SS316
Lubrication	MoS2

Note: The materials can be chosen according to your requirements.

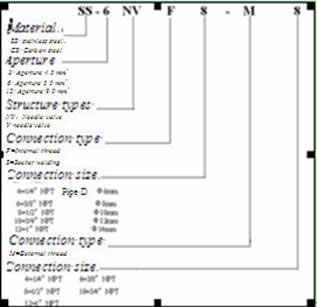

4. Size Standard:


NO.	Joint size	L	H	Do	Weight/Kg
SS-3NVF4	1/4〞NPTF	57	65	57	0.4
SS-3NVF6	3/8〞NPTF	57	65	57	0.4
SS-6NVF8	1/2〞NPTF	68	78	63	0.5
SS-12NVF10	3/4〞NPTF	80	95	80	1.0
SS-12NVF12	1〞NPTF	90	100	90	1.4

NO.	Joint size	L	H	Do	Weight/Kg
SS-3NVF4-M4	1/4〞NPTMXF	68	65	57	0.4
SS-3NVF6-M6	3/8〞NPTMXF	68	65	57	0.4
SS-6NVF8-M8	1/2〞NPTMXF	86	78	63	0.6

NO.	Joint size	L	H	Do	Weight/Kg
SS-3NVS6	Ф6	76	65	57	0.45
SS-3NVS8	Ф8	76	65	57	0.45
SS-6NVS10	Ф10	78	65	57	0.45
SS-12NVS12	Ф12	78	65	57	0.5
SS-12NVS12	Ф14	92	78	63	0.6



NO.	Joint size	L	H	Do	Weight/Kg
SS-3NVF4-D	1/4〞NPTF	57	65	57	0.4
SS-3NVF6-D	3/8〞NPTF	57	65	57	0.4
SS-6NVF8-D	1/2〞NPTF	68	78	63	0.5
SS-12NVF10-D	3/4〞NPTF	80	95	80	1.0
SS-12NVF12-D	1〞NPTF	90	100	90	1.4




NO.	In	Out	L	L1	H	Do	Weight/Kg
SS-6NVGF8-M8	G1/2〞A	G1/2〞	106	58	78	63	0.65
